AWS Certified Solutions Architect - Note (3)

Identity and Access Management (IAM)

Manages access of AWS users and resources

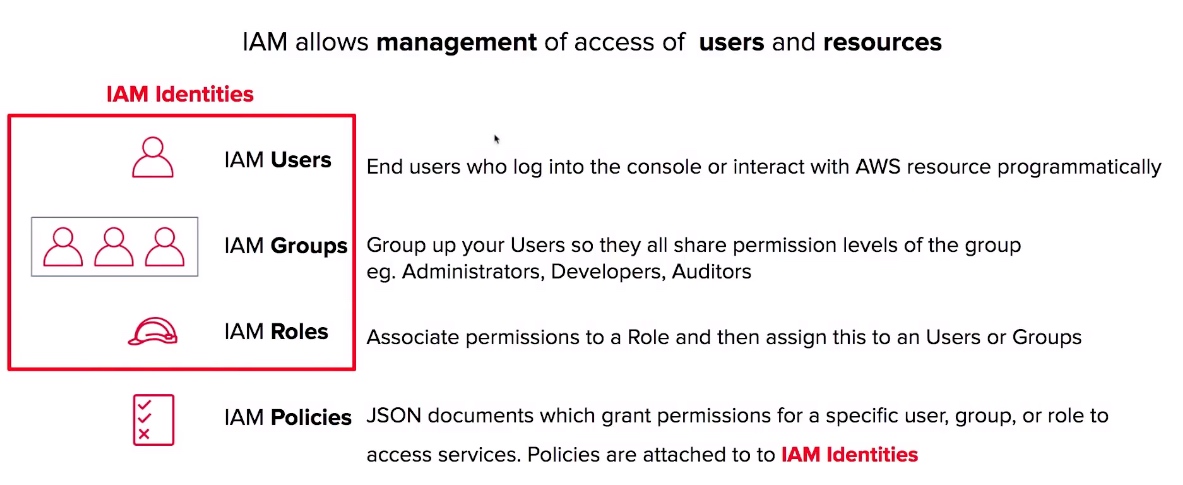

IAM Core Components

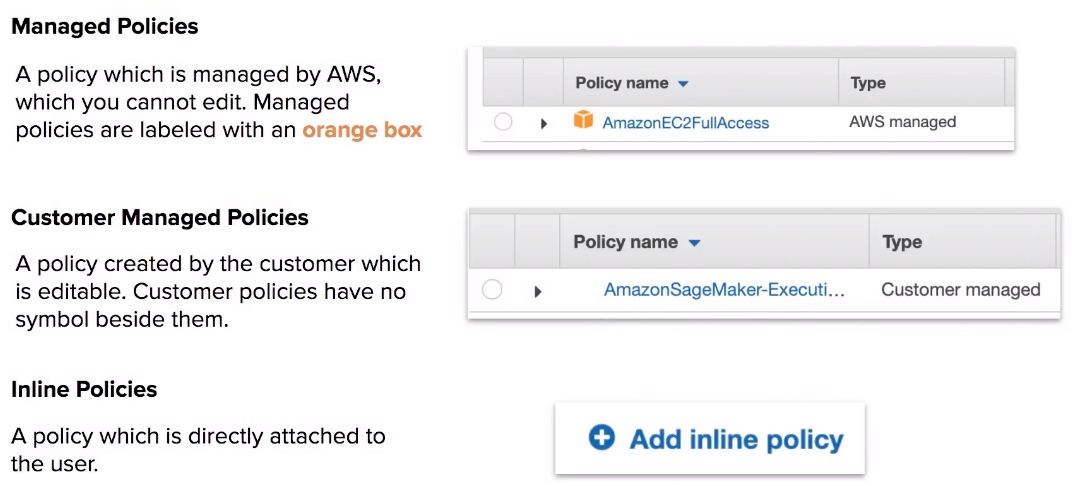

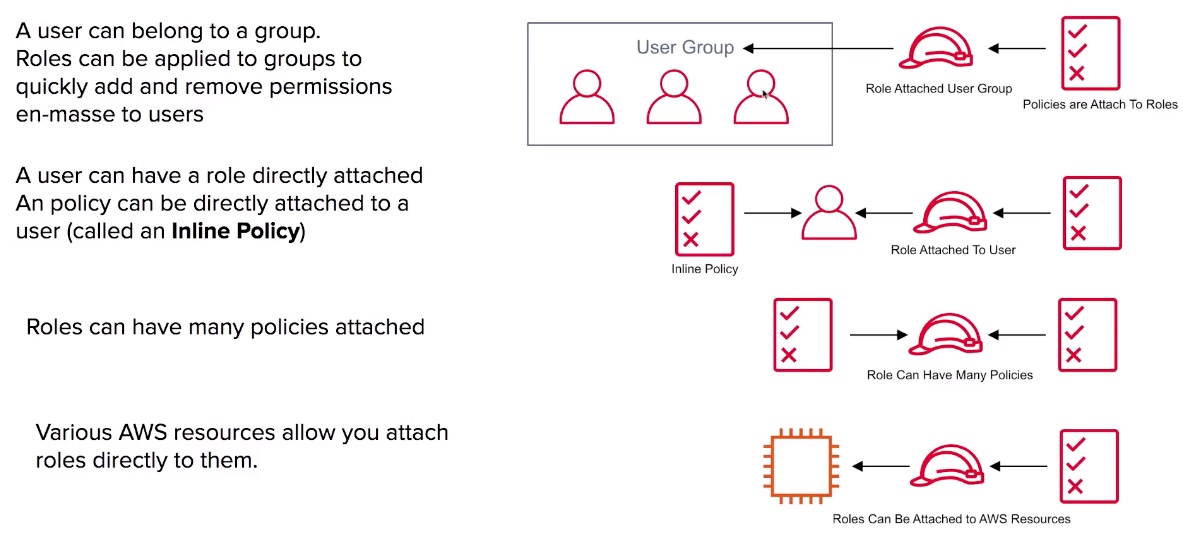

Types of Policies

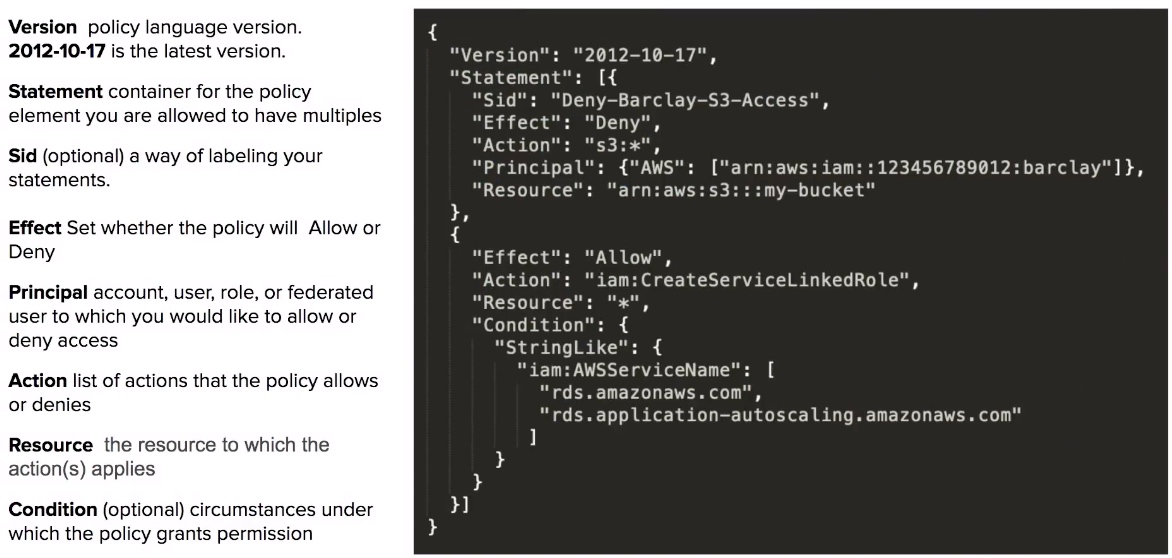

Policy Structure

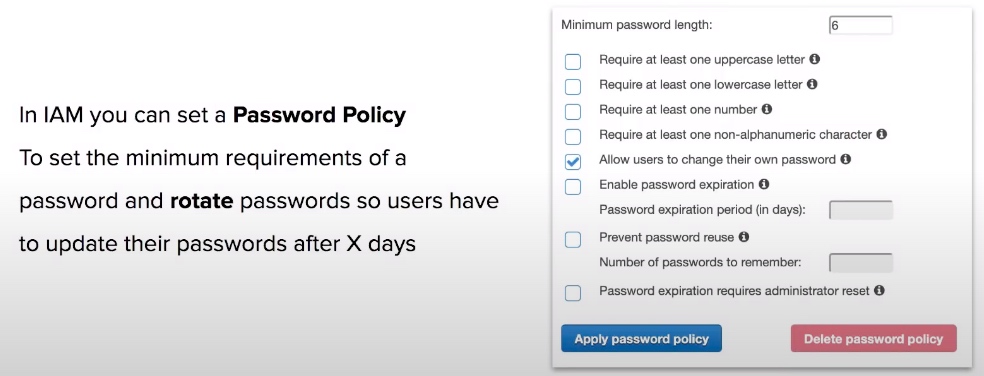

Password Policy

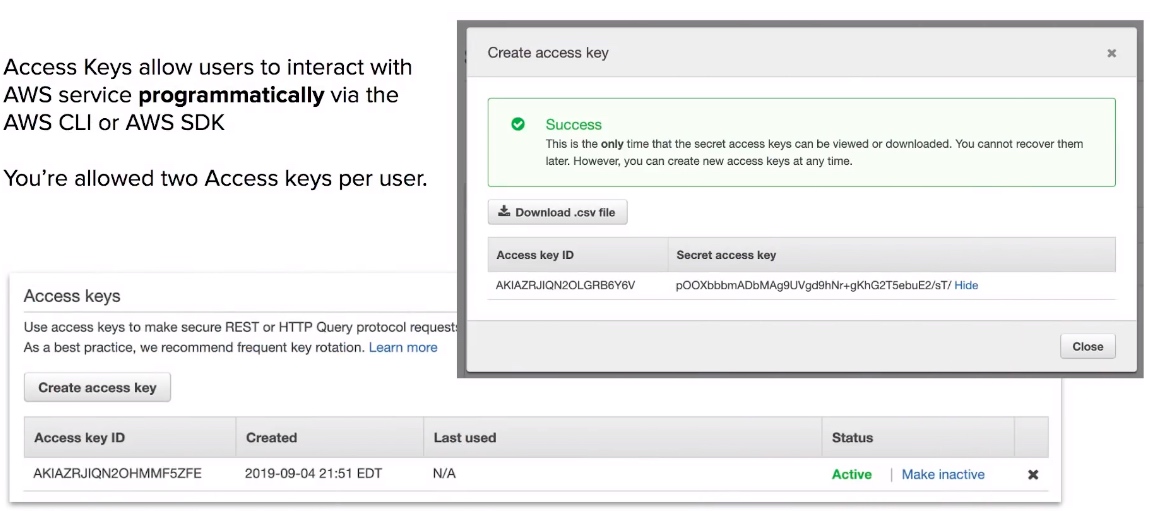

Programmatic Access Keys

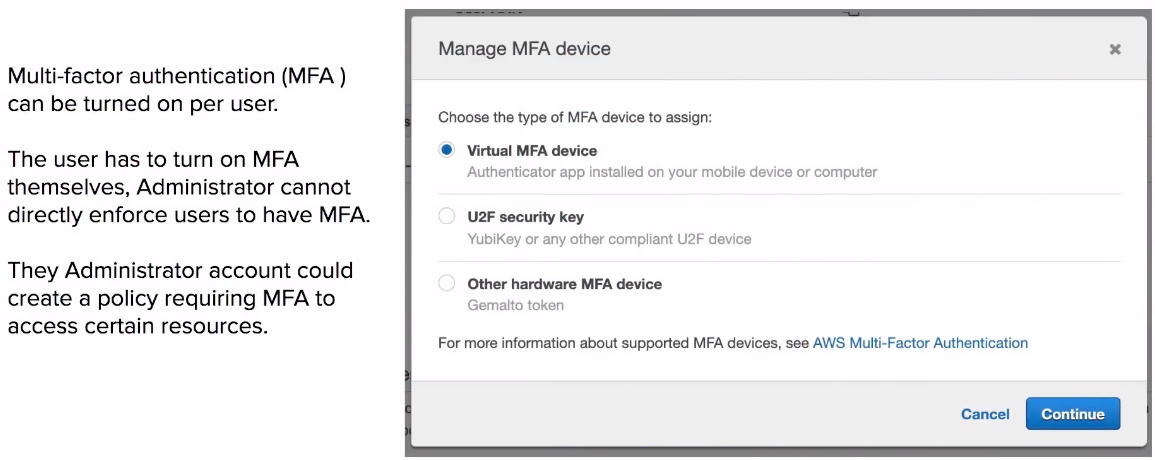

Multi-Factor Authentication (MFA)

IAM CheatSheet

  • Identity Access Management is used to manage access to users and resources.
  • IAM is a universal system. (applied to all regions at the same time). IAM is a free service.
  • A root account is the account initially created when AWS is set up. (full administrator)
  • New IAM accounts have no permissions by default until granted.
  • New users get assigned an Access Key ld and Secret when first created when you give them programmatic access.
  • Access Keys are only used for CLI and SDK. (cannot access console)
  • Access keys are only shown once when created. If lost they must be deleted/recreated again.
  • Always setup MFA for Root Accounts.
  • Users must enable MFA on their own, Administrator cannot turn it on for each user.
  • IAM allows your set password policies to set minimum password requirements or rotate passwords.
  • IAM Identities as Users, Groups, and Roles.
  • IAM Users End users who log into the console or interact with AWS resources programmatically.
  • IAM Groups Group up your Users so they all share permission levels of the group. eg. Administrators, Developers, Auditors
  • IAM Roles Associate permissions to a Role and then assign this to an Users or Groups.
  • IAM Policies JSON documents which grant permissions for a specific user, group, or role to access services. Policies are attached to to IAM Identities.
  • Managed Policies are policies provided by AWS and cannot be edited.
  • Customer Managed Policies are policies created by use the customer, which you can edit.
  • Inline Policies are policies which are directly attached to a user.

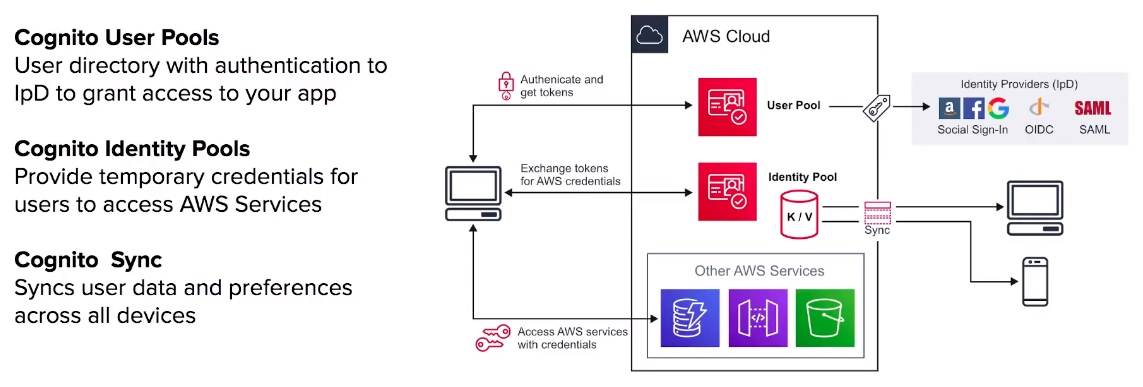

Amazon Cognito

Decentralized Managed Authentication. Sign-up, sign-in integration for your apps. Social identity provider(abbreviated IdP or IDP) eg. Facebook, Google.

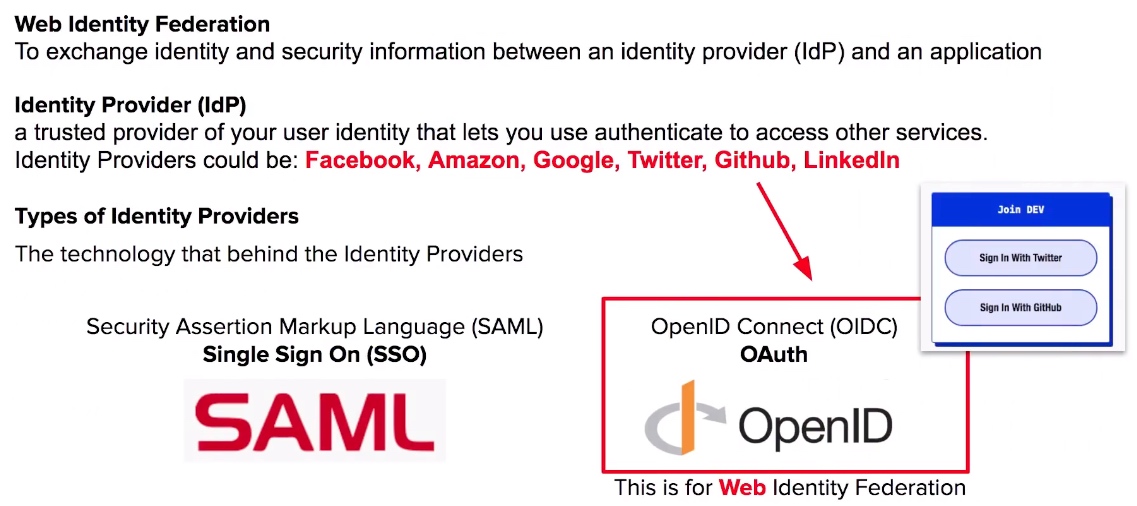

Web Identity Federation and Identity Provider

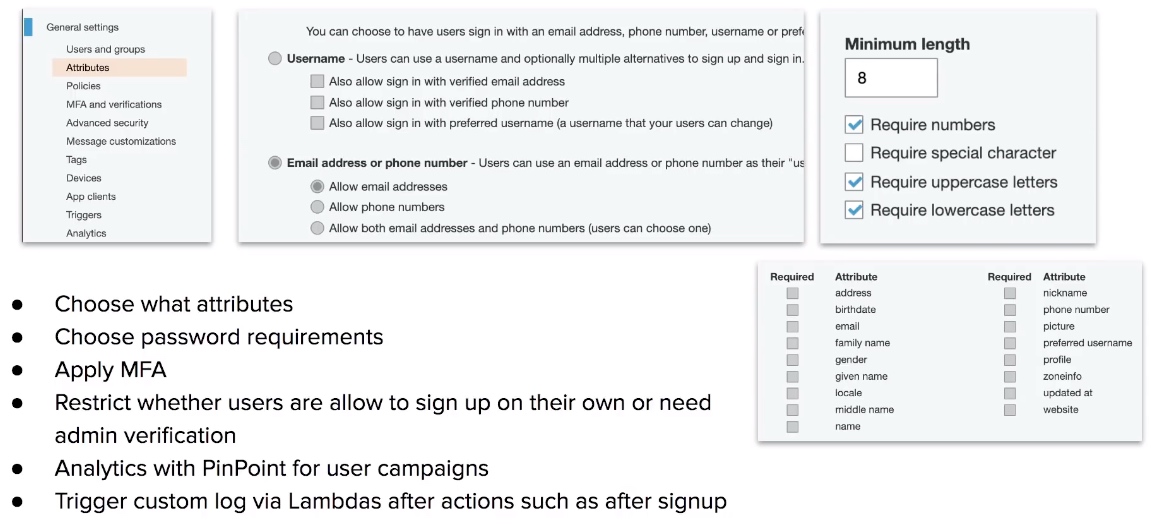

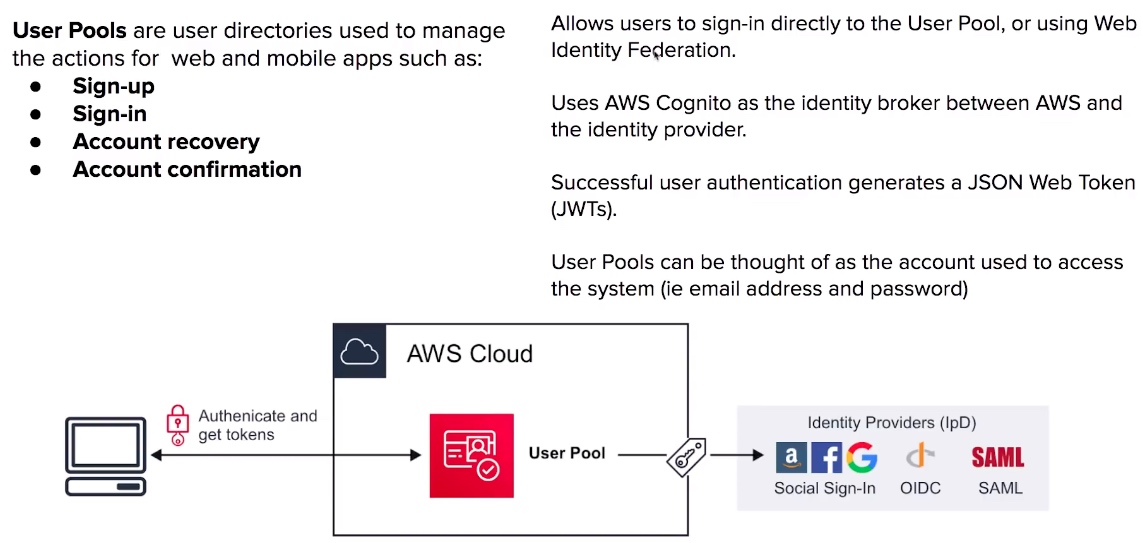

Cognito User Pools

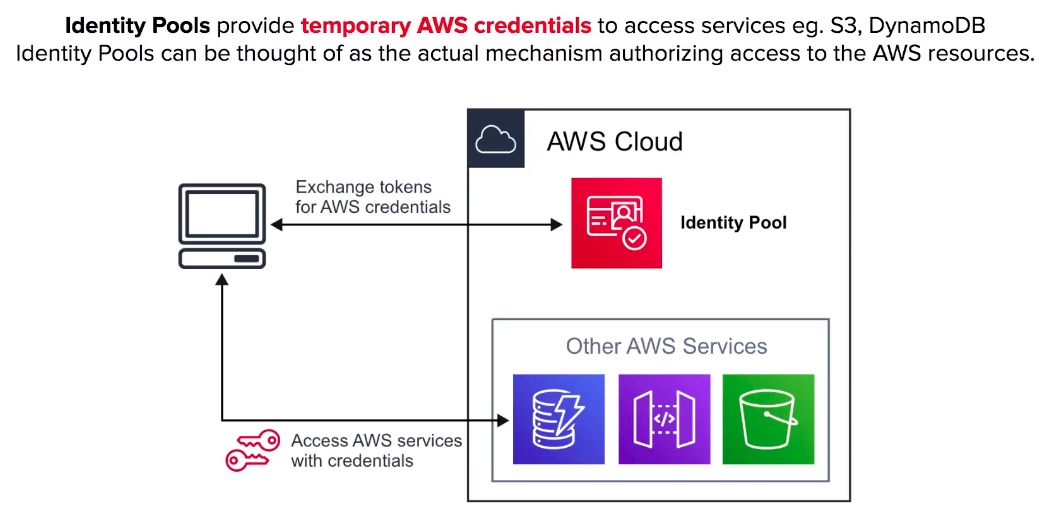

Cognito Identity Pools

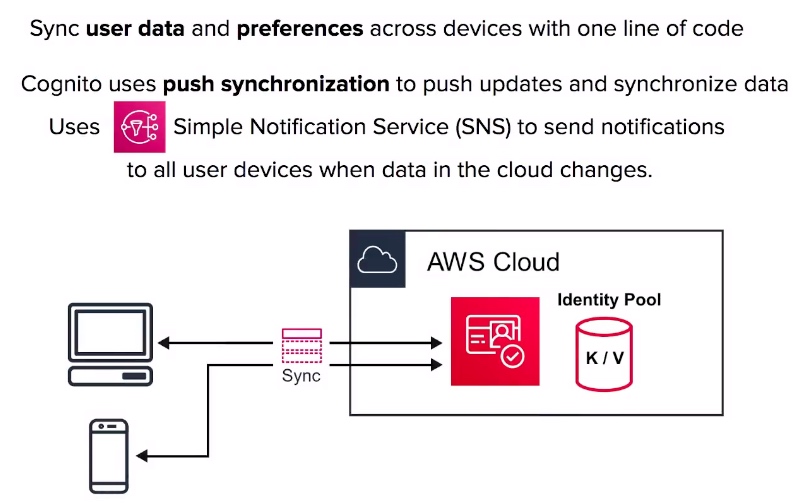

Cognito Sync

Cognito CheatSheet

  • Cognito is decentralized managed authentication system. When you need to easily add authentication to your mobile and desktop app think Cognito
  • User Pools user directory, allows users to authenticate using OAuth to IpD such as Facebook, Google, Amazon to connect to web-applications. Cognito User Pool is in itself a IpD.
  • User Pools use JWTs for to persist authentication.
  • Identity Pools provide temporary AWS credentials to access services eg. S3, DynamoDB.
  • Cognito Sync can sync user data and preferences across devices with one line of code. (powered by SNS)
  • Web Identity Federation exchange identity and security information between an identity provider (ldP) and an application.
  • Identity Provider (IdP) a trusted provider of your user identity that lets you use authenticate to access other services. eg. Facebook, Twitter, Google, Amazon.
  • OIDC is a type of Identity Provider which uses Oauth.
  • SAML is a type of Identity Provider which is used for Single Sign-on.

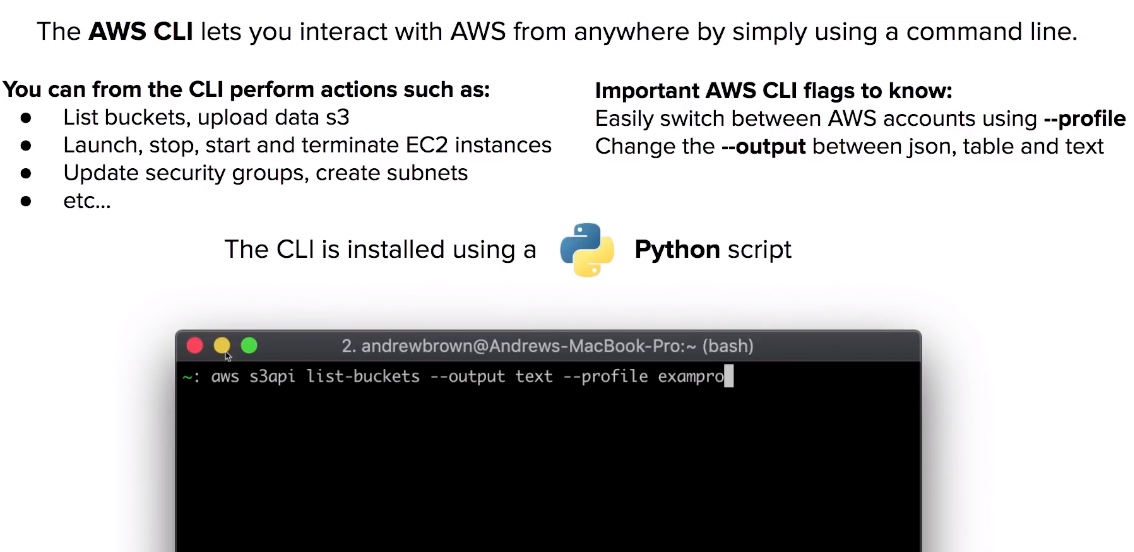

AWS Command line interface

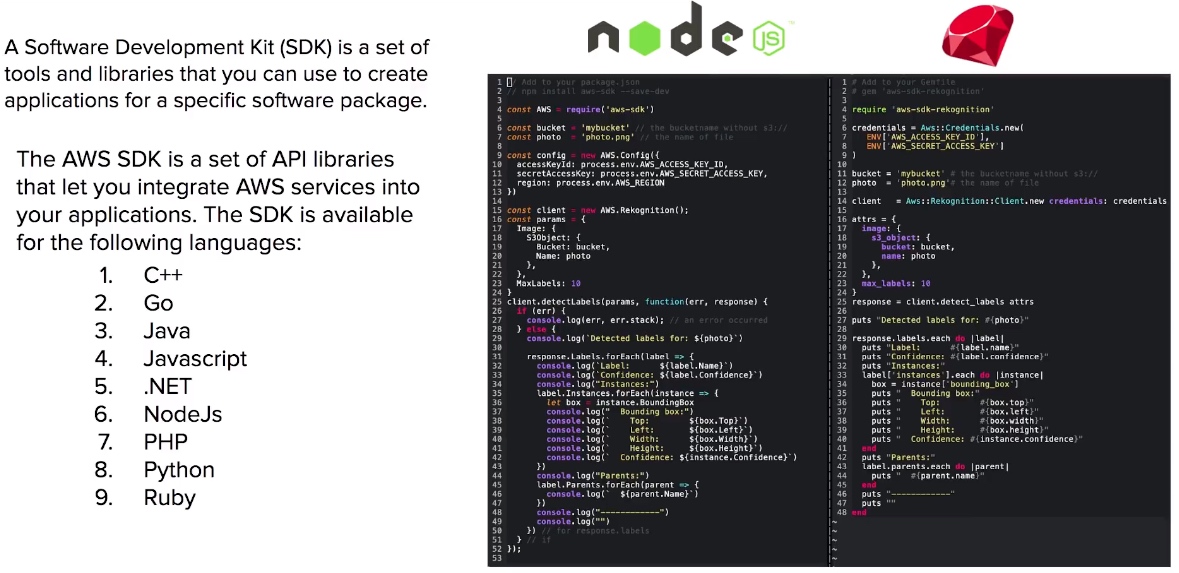

AWS Software Development Kit (SDK)

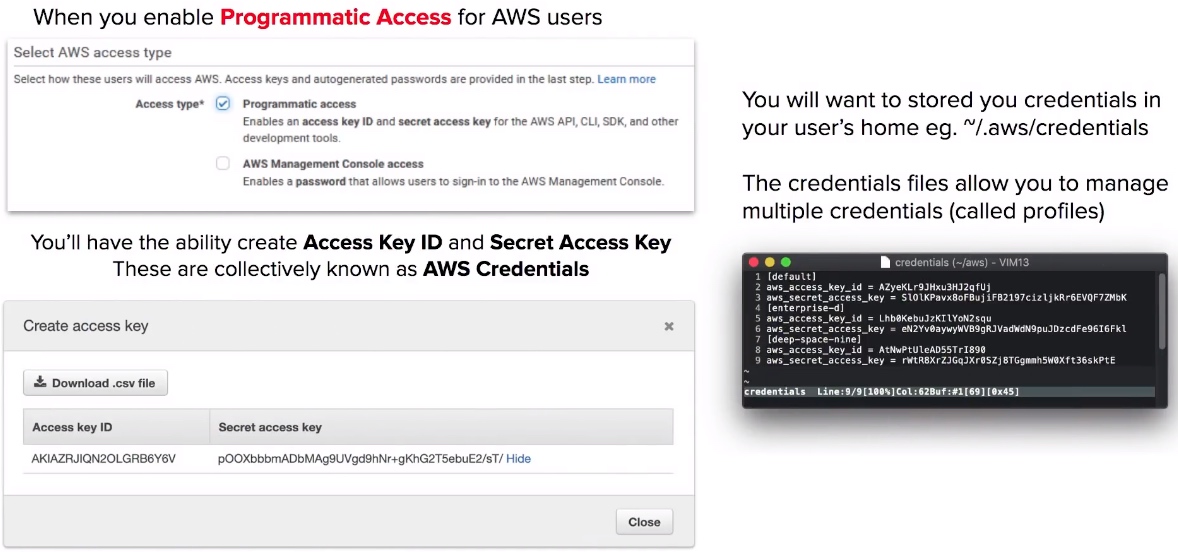

Programmatic Access - Access Key and Secret

AWS CLI & SDK CheatSheet

  • CLI stands for Command Line Interface.
  • SDK stands for Software Development Kit.
  • The AWS CLI lets you interact with AWS from anywhere by simply using a command line.
  • The AWS SDK is a set of API libraries that let you integrate AWS services into your applications.
  • Programmatic Access must be enabled per user via the IAM console to use CLI or SDK.
  • aws configure command used to setup your AWS credentials for the CLI.
  • The CLI is installed via a Python script.
  • Credentials get stored in a plain text file. (whenever possible use roles instead of AWS credentials)
  • The SDK is available for the following programming languages
    • GO
    • Java
    • Javascript
    • .NET
    • NodeJs
    • Python
    • Ruby
